JACK PANELS
TTP96K WIRED AUDIO SERIES PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information
TTP96K WIRED AUDIO SERIES

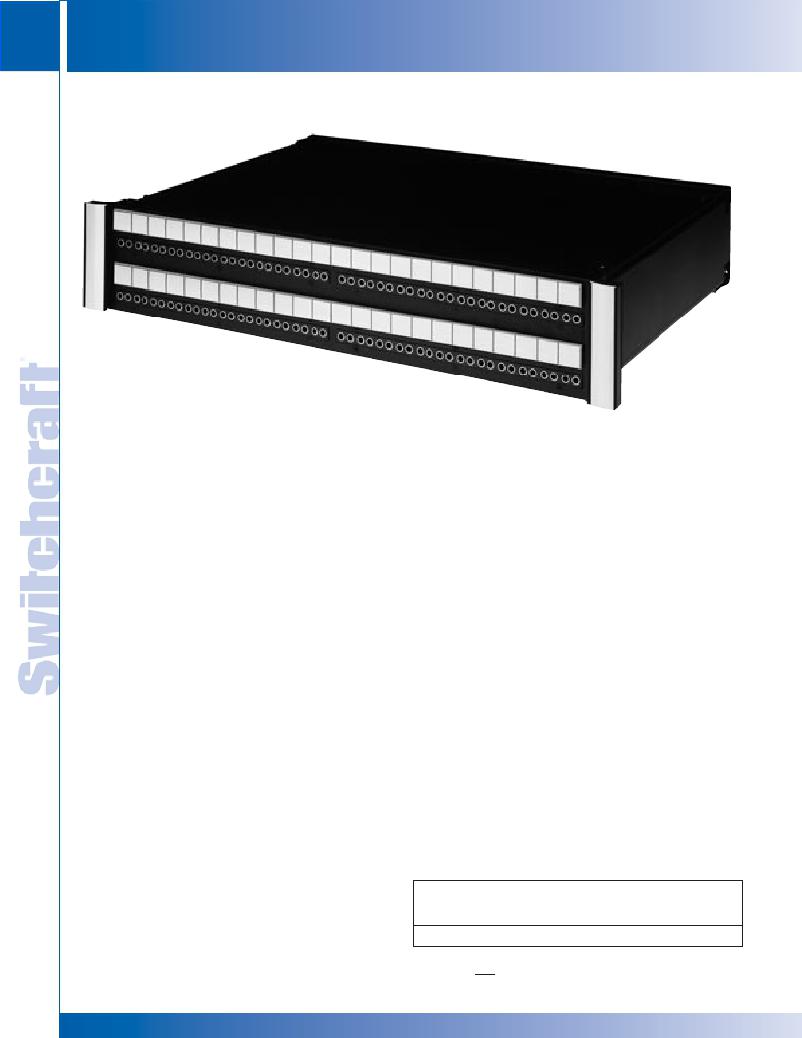

TT96K3NS
The TTP96K Series was developed with the AES/EBU
digital standard in mind. As a standard the TTP96K utilizes
110 Ohm cabling inside.
FEATURES AND BENEFITS
? Unit features 96 TT style jacks in 2RU
(3.5"H) space
? Utilizes AES/EBU wiring for complete
digital compatibility
? Attractive, corrosion resistant nickel-plated,
steel frame jacks
? Gold-plated switching contacts reduce
contact resistance, improve reliability
? Rugged, attractive black epoxy-finished
steel chassis
? Extra wide designation strips for easy
channel identification
SPECIFICATIONS
MATERIALS
JACKS
Frame: Nickel-plated steel
Bushing: Nickel-plated brass
Tip, Ring and Shunt Springs: Nickel silver with
welded contacts
Assembly Screws: Zinc-plated steel
Welded Contacts: Gold alloy
PANEL
MECHANICAL
Life: 30,000 cycles
Insertion Force: 7 lbs. maximum
Withdrawal Force: 1 lb. minimum
Environmental: O°C to +50°C
ELECTRICAL
Contact Resistance: 30 milliohms maximum initial
Insulation Resistance: 10,000 megohms maximum
Dielectric Withstanding Voltage: 500 VAC at 60 Hz
Working Voltage: 140 VDC maximum
Current Rating: 100 milliamps
Front Channel: Black anodized aluminum
Frame: C.R.S. black epoxy painted
Designation Strips: Black polycarbonate 94V-0
Designation Strip Covers: Clear polycarbonate
Jack Inserts: Thermoplastic polyester
Ordering Information
Part Type of No. of
Number Jack Jacks
TTP96K3NS TT 96
Description
3.5" High, normals strapped
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
